CBG2204 surfaced LED glass shelf light

Home / Products / LED Linear Lights / Surface Mounted Linear Lights / CBG2204 surfaced LED glass shelf light

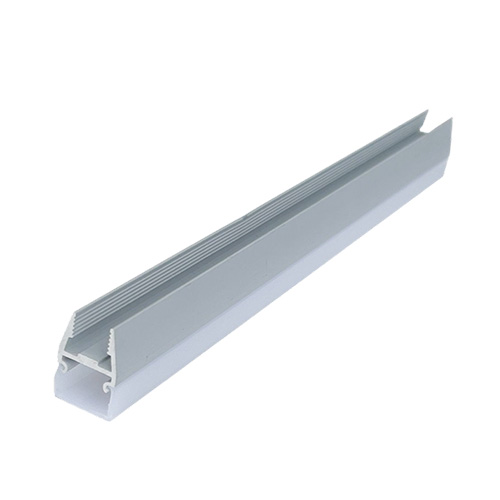

CBG2204 LED glass shelf light

Surface Mount 8mm Glass Shelf Light – CBG2204, L×22×15mm, DC12V, Gray, 10W/M, Inward-Facing 3-Side Illumination

✨ Revolutionary Inward-Facing 3-Side Illumination – Light Where It Matters Most

Introducing the CBG2204 Glass Shelf Light Bar – a game-changing lighting solution designed specifically for 8mm thick glass shelves. Unlike conventional shelf lights that shine outward into the room, the CBG2204 features a unique 3-side inward-facing design that directs light onto the shelf surface itself.

This means your products, collectibles, and merchandise receive focused, shadow-free illumination from multiple angles – while the light source remains discreetly hidden from direct view. The result? A stunning, professional display with no glare, no harsh hotspots, and no light spilling into visitors’ eyes.

💡 Why Choose This Light?

✅ Unique 3-side inward-facing design – light stays on the shelf, not in your eyes
✅ Designed for 8mm glass – perfect fit, secure grip
✅ 10W/M high brightness – powerful, even illumination
✅ 3 color temperature options – 3000K / 4000K / 6000K
✅ Gray premium finish – neutral, versatile, scratch-resistant
✅ 22×15mm profile – low-profile with superior coverage
✅ Surface mount clip system – tool-free, seconds to install
✅ Custom lengths available – cut to your exact specifications
✅ Low voltage DC12V – safe for all indoor applications
✅ Aluminum housing – excellent heat dissipation, long life
✅ No adhesive, no drilling – clean installation, easy removal
✅ Glare-free display lighting – professional results every time

Send Your Inquiry Today

Contact Form
Send Your Inquiry Today

CBG2204, 8mm glass shelf light, inward-facing shelf light, 3-side illumination shelf light, glare-free shelf lighting, gray glass shelf light, 10W LED light bar, DC12V shelf light, 3000K shelf lighting, 4000K glass shelf light, 6000K display lighting, custom length LED light, surface mounted shelf light, glass shelf LED bar, clip-on shelf light, tool-free installation, aluminum shelf light, retail display lighting, jewelry display lighting, museum display lighting, showcase lighting, kitchen cabinet lighting, wardrobe shelf light, under shelf lighting, cabinet lighting, product display lighting, eye-level display lighting, shadow-free illumination, professional display lighting, China lighting supplier, wholesale LED lights, B2B lighting solutions, commercial display lighting

  • Unique 3-Side Inward-Facing Illumination

    This is what sets the CBG2204 apart from every other shelf light on the market: Lighting Direction Effect Top side inward Illuminates items on the shelf from above Bottom side inward Eliminates shadows underneath objects Front side inward Bathes the shelf surface in even, diffuse light 💡 The light stays ON the shelf – not in your eyes. Perfect for eye-level displays, glass showcases, and any application where visual comfort matters.

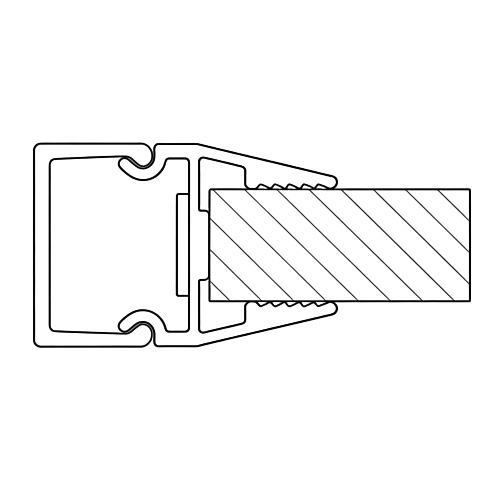

  • Purpose-Built for 8mm Glass Shelves

    Precision-engineered mounting clips securely grip 8mm thick glass – no slipping, no adhesive, no mess. The light sits flush against the glass for a clean, integrated look.

  • 3-Side vs Traditional Outward-Facing – The Difference

    Feature Traditional Outward-Facing Light CBG2204 Inward-Facing Light Light Direction Shines outward into the room ✅ Shines inward onto the shelf Glare Effect High – visible light source ✅ Low – hidden light source Product Illumination Indirect – items in silhouette ✅ Direct – items fully lit Visual Comfort Harsh on eyes ✅ Soft, comfortable viewing Best For Ambient room lighting ✅ Display and product lighting

  • High Brightness – 10W Per Meter

    Delivers powerful, uniform illumination at 10W/M – bright enough to highlight products and details while remaining energy-efficient.

  • Three Color Temperature Options

    Color Temperature Atmosphere Best For 3000K Warm White – cozy, inviting Boutiques, residential, lounges 4000K Natural White – clean, balanced Retail, kitchens, offices 6000K Cool White – crisp, daylight-like Jewelry, galleries, showcases

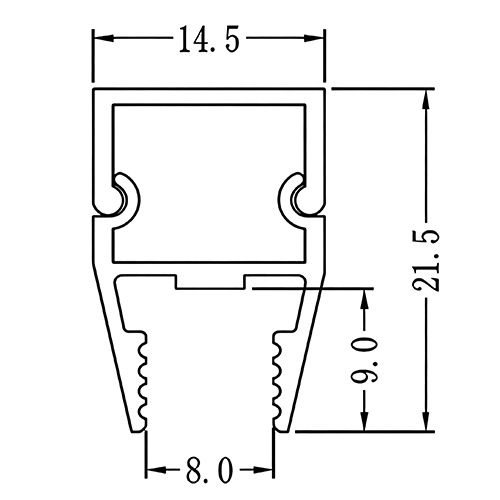

  • Ultra-Slim Profile (L × 22mm × 15mm)

    At 22mm wide and 15mm high, this light bar offers a low-profile appearance while accommodating the 3-side LED configuration – the extra width delivers superior lighting coverage.

  • Surface Mounted Clip System – Tool-Free Installation

    No drilling, no complex wiring. The light simply clips onto the glass shelf using the pre-installed surface-mounted brackets – install in seconds.

  • Low Voltage DC12V – Safe & Reliable

    Runs on safe 12V DC power – ideal for indoor furniture, cabinetry, and display cases. No heat buildup, no safety concerns.

  • Durable Aluminum Construction

    The aluminum body provides excellent heat dissipation, ensuring long LED life and consistent performance.

Model:CBG2204
Product Type: Glass Shelf LED Light Bar
Compatible Glass Thickness: 8mm
Lighting Direction: 3-Side Inward-Facing (top + bottom + front)
Power: 10W per meter
Input Voltage :DC 12V
Dimensions :Custom Length × 22mm × 15mm
Housing Color: Gray (Anodized)
Housing Material: Aluminum+PC
Light Color Options: 3000K / 4000K / 6000K
Mounting Type: Surface Mounted (Clip System)
Installation :Tool-free – clips onto glass edge
Length Customization: Yes – cut to any required size

🏠 Perfect For

  • Retail display shelves – light products, not customers’ eyes

  • Jewelry and watch showcases – eliminate glare on glass

  • Museum and gallery displays – preserve visual comfort for visitors

  • Kitchen cabinet glass shelving – see contents clearly without harsh light

  • Wardrobe and closet glass shelves – soft, even illumination

  • Collectible and memorabilia displays – highlight details without hotspots

  • Glass countertop displays – professional presentation

  • Any eye-level display – where visual comfort is paramount

Download Manual
Download Specification
Customization Service

We provide flexible OEM & ODM services:

• Custom sizes and shapes
• Logo printing
• Packaging design
• Cable length customization
• Special lighting solutions

All products are strictly tested before shipment.

We support international standards such as:
CE / RoHS (if applicable)

Long-term cooperation with global clients ensures stable quality.

• Standard export carton packaging
• Safe protection for long-distance shipping
• Multiple shipping options available:
– Sea freight
– Air freight
– Express delivery

Lead time depends on order quantity.

Do you provide samples?

Yes, samples are available.

Can you customize the product?

Yes, OEM & ODM are supported.

Do you ship internationally?

Yes, we ship worldwide.

How can I get a quote?

Send us your requirements and quantity.

  • Professional LED Cabinet Lighting Supplier

    We focus exclusively on LED cabinet lighting solutions. With years of export experience, we understand international market standards and customer expectations.

  • One-Stop Sourcing & Export Service

    From product selection to quality inspection and international shipping — we handle everything. You don’t need to deal with multiple suppliers or logistics companies.

  • Multiple Color Options

    Three colors available: white, black and silver.

  • Stable Quality Control

    Every order goes through strict inspection before shipment. We ensure consistent quality for bulk and repeat orders.

  • Flexible OEM & Customization

    We support: Logo printing Customized packaging Special specifications Private label solutions Helping you build your own brand easily.

  • Competitive Wholesale Pricing

    As a professional sourcing and export company, we optimize supply chains to provide cost-effective solutions without compromising quality.
