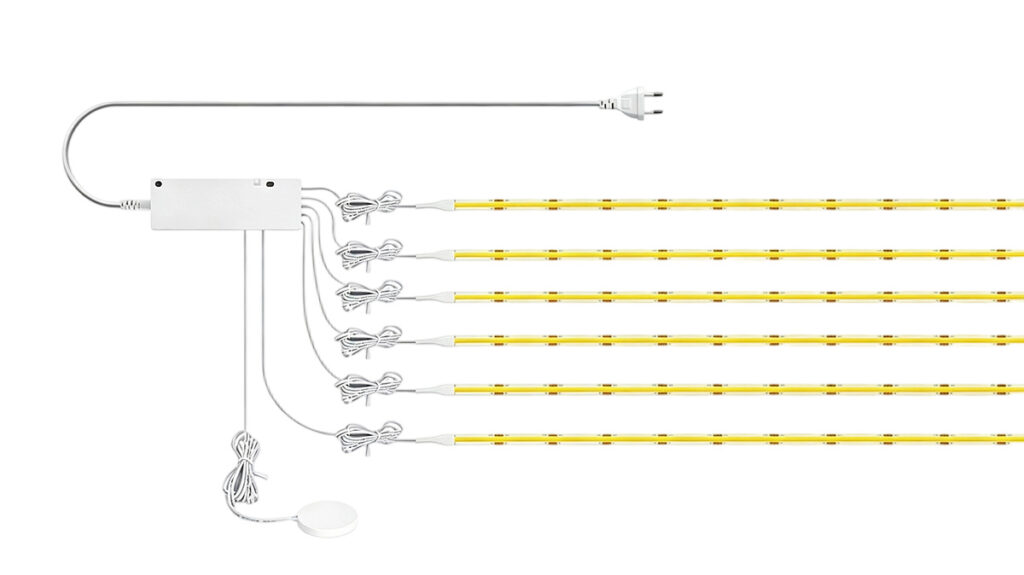

When installing multiple LED glass shelf strips in cabinets, display cases, or wardrobes, choosing the correct transformer (LED driver) is essential for safety, performance, and long-term reliability.
If the transformer is too small, the lights may flicker, dim, or fail early. If it is oversized without proper planning, it may waste energy and increase cost unnecessarily.
In this guide, you’ll learn a simple and accurate method to calculate the correct transformer wattage for multiple LED glass shelf strips, especially for 12V cabinet lighting systems.
What Is a Transformer (LED Driver) in Shelf Lighting?
A transformer, also called an LED driver or power supply, converts standard household AC power (110V or 220V) into low-voltage DC power (commonly 12V for cabinet lighting).
For glass shelf LED systems, it:
- Powers multiple LED strips or shelf lights
- Ensures stable voltage output
- Protects LEDs from overload
- Supports dimmers, sensors, and switches
Most cabinet lighting systems use 12V DC Class 2 drivers, which are safe and easy to install.
Step 1: Find the Wattage of Each LED Strip
Every LED strip or glass shelf light has a rated power consumption, usually expressed as:
- Watts per meter (W/m), or
- Total wattage per shelf light
For example:
- LED strip A: 5W per shelf
- LED strip B: 8W per shelf
- LED strip C: 10W per shelf
You must collect the wattage for all connected lights.
Step 2: Add Up Total Power Consumption
Next, calculate the total wattage of all LED glass shelf strips.
Example:
- Shelf 1: 6W
- Shelf 2: 6W
- Shelf 3: 6W
- Shelf 4: 6W
👉 Total load = 24W
If you have mixed products:
- 2 × 6W strips = 12W
- 3 × 8W strips = 24W
👉 Total = 36W
Step 3: Add a Safety Margin (Very Important)
Never choose a transformer that runs at 100% capacity.
Always add a 20%–30% safety margin to ensure stable performance and longer lifespan.
Formula:
Required Driver Wattage = Total Load × 1.2 ~ 1.3
Example:
Total LED load = 36W
- Minimum safe driver = 36 × 1.2 = 43.2W
- Recommended driver = 50W
👉 You should choose a 50W 12V LED driver
Step 4: Choose the Correct Voltage (12V or 24V)
For cabinet glass shelf lighting, voltage must match the system.
Most common choice: 12V DC systems
We recommend 12V systems for:
- Kitchen cabinets
- Glass display cabinets
- Wardrobes
- Small shelving systems
Advantages:
- Easy installation
- Widely compatible
- Ideal for short cable runs
- Common in plug-and-play systems
24V systems (less common for cabinets)
Used for:
- Long LED strip runs
- Large commercial displays
- Architectural lighting
👉 For most cabinet lighting projects, 12V is the standard choice
Step 5: Consider Voltage Drop and Cable Length
If multiple shelves are installed in a cabinet, cable length can affect performance.
When voltage drop matters:
- Long cable runs (>3–5 meters total)
- Many shelves connected in series
- High-power LED strips
Solutions:
- Use thicker cables
- Use multiple output channels
- Choose higher efficiency LED strips
- In some cases, switch to 24V systems
For typical glass shelf cabinets, voltage drop is usually not a major issue.
Step 6: Check Driver Output Compatibility
Make sure your transformer matches:
- Voltage (12V DC or 24V DC)
- Total wattage capacity
- Connector type (plug-and-play or hardwired)
- Indoor or Class 2 certification
A mismatch can cause:
- Flickering lights
- Overheating
- Shortened LED lifespan
- System failure
Practical Calculation Example (Real Cabinet Setup)
Imagine a cabinet with 5 glass shelves:
- Each shelf LED strip = 6W
- Number of shelves = 5
Step 1: Total load
6W × 5 = 30W
Step 2: Add safety margin
30W × 1.2 = 36W
Final recommendation:
👉 Use a 12V 40W–60W LED driver
This ensures stable performance and future expansion flexibility.
Common Mistakes to Avoid
- Choosing a driver that matches exactly the LED wattage (no safety margin)
- Mixing 12V and 24V systems
- Ignoring total combined load of multiple shelves
- Overloading a single driver with too many strips
- Using non-certified or low-quality power supplies
- Not considering future expansion
Tips for Professional Installation
For best results in glass shelf lighting systems:
- Always calculate total wattage before installation
- Choose a driver with extra capacity (20–30%)
- Keep power supply in a ventilated hidden location
- Use plug-and-play connectors for easier maintenance
- Group shelves into zones if the system is large
- Test all lights before final cable hiding
Frequently Asked Questions
Can one transformer power multiple LED glass shelves?
Yes. As long as the total wattage does not exceed the driver’s rated capacity (including safety margin).
What happens if the transformer is too small?
The system may experience:
- Flickering
- Dim lighting
- Overheating
- Early failure
Is 12V or 24V better for multiple shelves?
For cabinet glass shelf lighting, 12V is usually sufficient and most commonly used. 24V is better only for long-distance or large-scale installations.
Can I mix different shelf lights on one driver?
Yes, as long as all lights are compatible (same voltage) and total wattage is within limit.
Final Thoughts
Calculating the correct transformer wattage for multiple LED glass shelf strips is simple but essential. You only need to:
- Add total wattage of all LED strips
- Apply a 20–30% safety margin
- Choose a matching 12V or 24V LED driver
For most cabinet and glass shelf lighting systems, 12V LED drivers are the ideal choice, offering safety, compatibility, and easy installation.
By selecting the right transformer, you ensure stable brightness, longer LED lifespan, and a professional lighting result for any cabinet or display system.
